The glass is a cover over a sensing system. Follow the tiny change in electrical coupling that helps a touchscreen locate your finger.
Watch on YouTubePublished by Howloft. Read our sourcing and corrections approach. Our visual models are simplified to explain the idea. Have a question or spotted something we should revisit? Tell us.

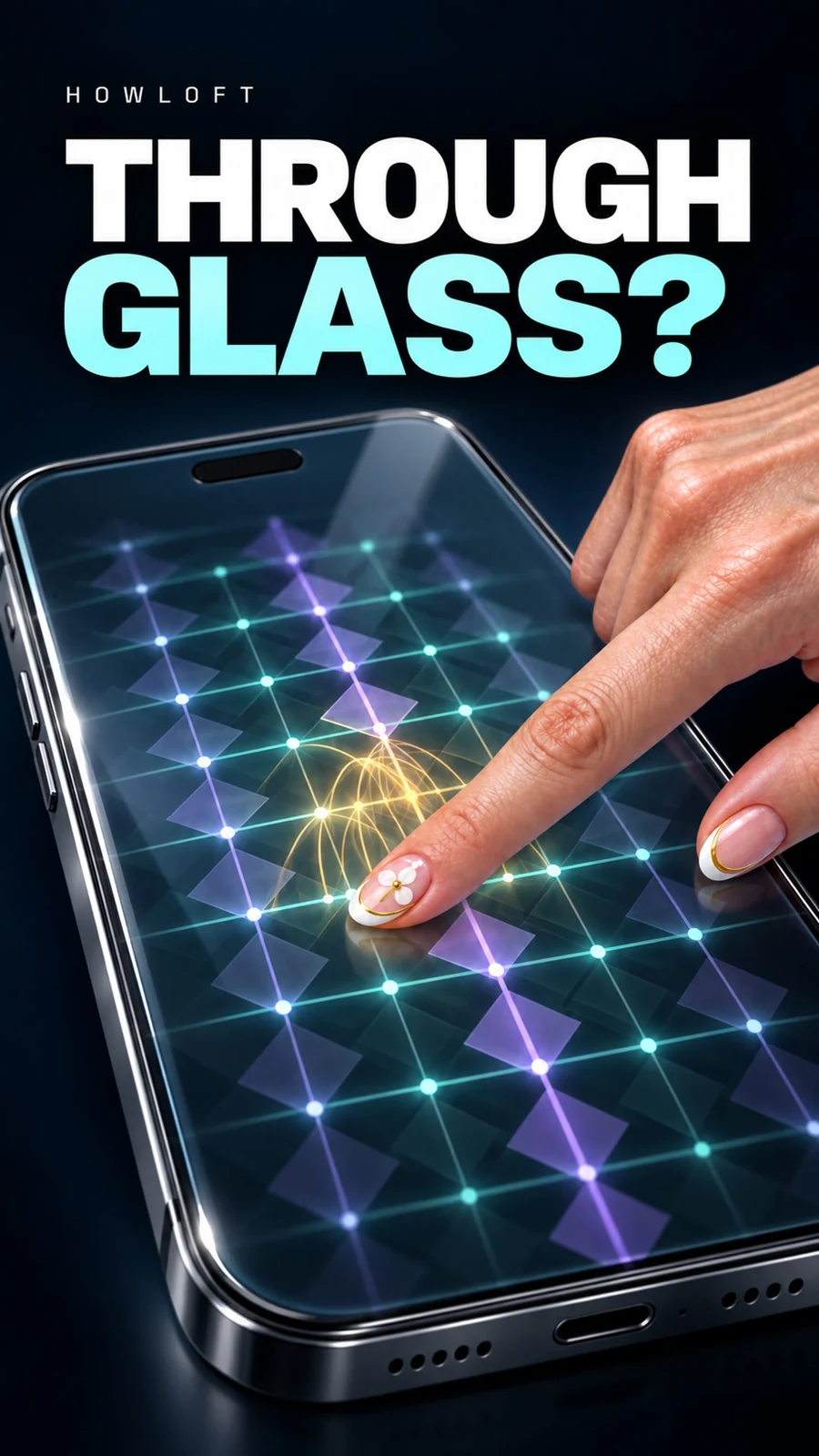

One mutual-capacitance design uses transmit and receive electrodes arranged as a sensing grid. The glass acts as an insulating cover through which electric fields can extend. A conductive fingertip changes the coupling between nearby electrodes, producing a measurable change in the touch signal.
The controller measures the sensor nodes and processes the pattern of changes to estimate where a touch occurred. In the mutual-capacitance example, a finger typically reduces the measured coupling. Real screens use different electrode layouts and may combine mutual- and self-capacitance measurements.
No. Capacitive coupling lets the sensor respond through the insulating cover glass.
No. This is one illustrative mutual-capacitance design. Electrode patterns, sensor construction and measurement methods vary.
